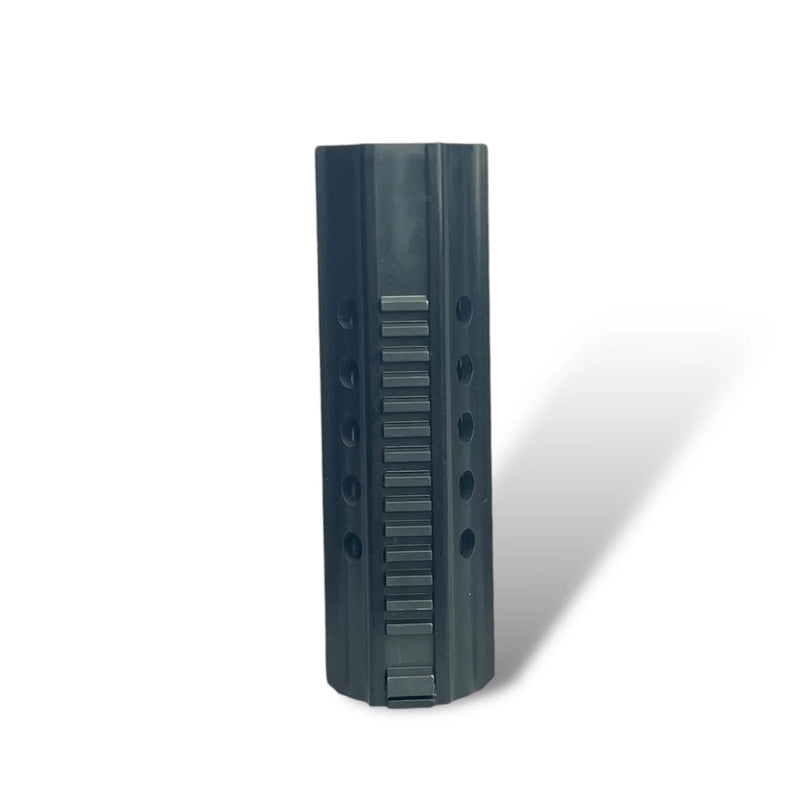

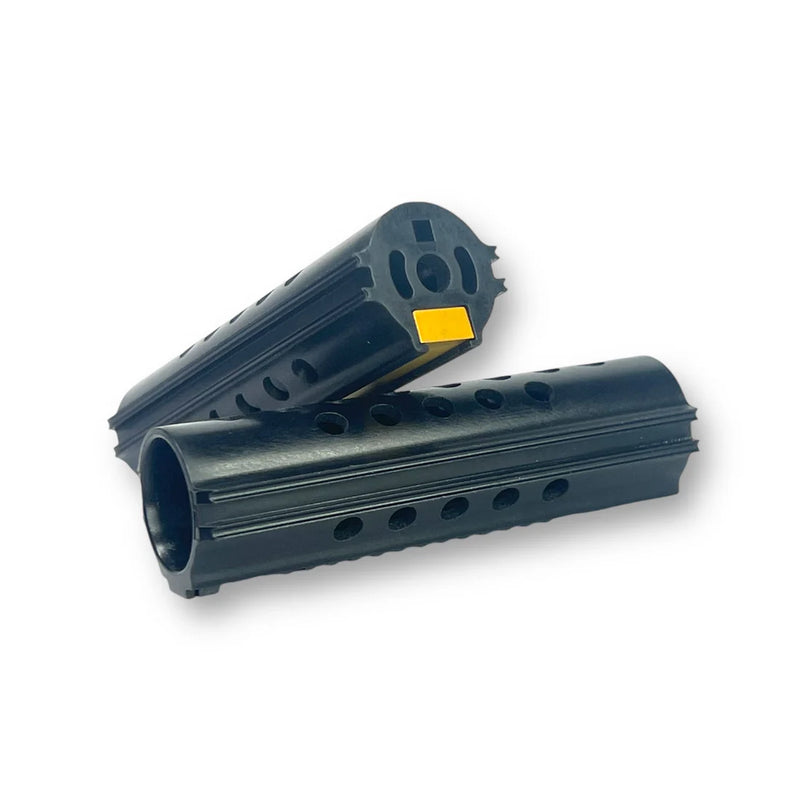

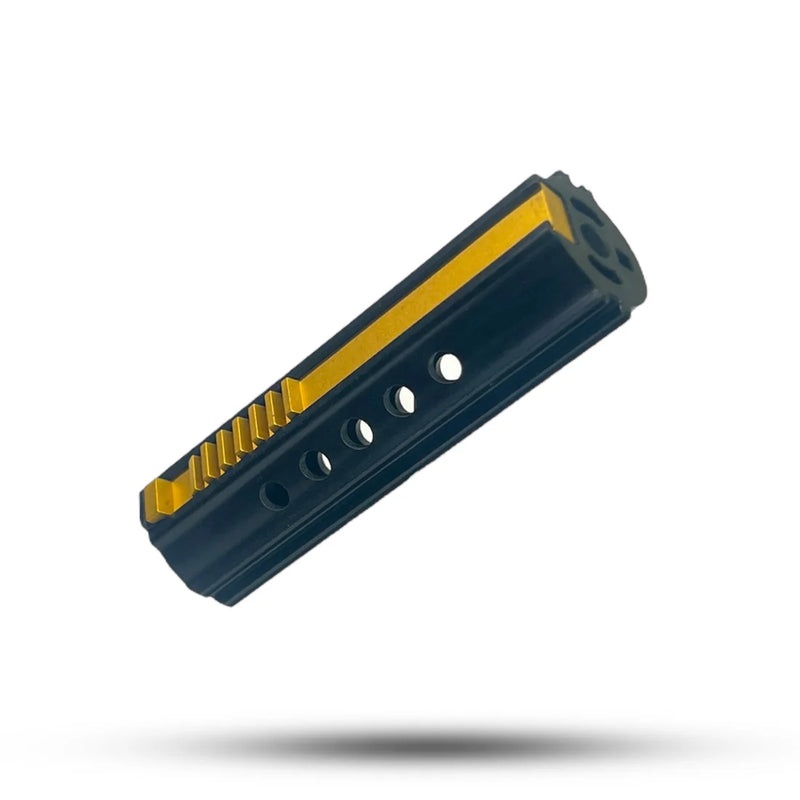

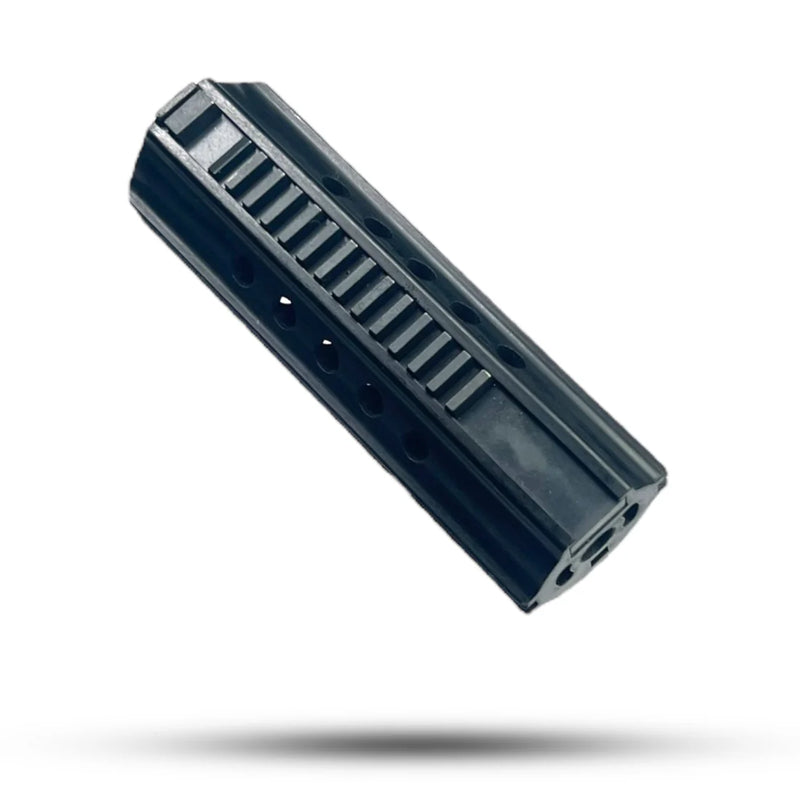

Ultimate Performance Piston 2025

The Real Deal Airsoft Ultimate Performance Piston Assembly

Available in SSG / DSG Variants

This Performance Piston Assembly has been designed 100% in house specifically to keep up with modern Airsoft and Gelbalster Technology.
With the emergence of Brushless Motors, higher quality mosfets, & Increasingly Fast, High Performance Competition Grade Builds, this piston is designed to be the reliable work-horse, ready to take on any load. What ever your build is, you can use this widely compatible piston.

Main Product Features

Our Ultimate Performance Piston is made from a proprietary blend of materials being Polycarbonate as the base, combined with two other Polymers which increase the ability to absorb shock. This results in a serious degree of strength and resilience. Tester ran over 150k rounds at 400 FPS 52 RPS and is still running.  (12/26/24 Update Tester has over 300K rounds cycled )

We redesigned our piston's body, increasing the overall length by 3mm. Our piston bodies are 3mm longer than your standard TM spec piston. This is the perfect AOE correction. DO NOT use AOE washers or spacers with this piston. It is Pre AOE corrected 100% drop in ready. Our piston is designed to work with our cylinder head for perfect AOE.

With a longer body comes a longer rack. Our rack is proprietary to our piston. We redesigned the entire rack, changing the dimensions of the pick up tooth, having the 2nd tooth removed with the 3rd tooth cut to a 45 degree angle. Our DSG Racks have a total of 7 teeth removed, which means on a 8 tooth Duel Sector Gear, you will have one tooth on the rack after the release tooth. This adds integrity to the rack and saves weight.

High Speed Cutouts throughout the body. Cutouts below the rails as well as the entire top portion of the body, a total of 28 cut outs. Reducing the weight as much as possible, our larger stronger piston only weighs 15.8g for the DSG and 16.5g for the SSG Version.

The Racks are Metal Injected Chromoly Steel which means our dimensions are always perfect. We then put our racks through heat treatment to a specific hardness, and then we apply our special surface treatments.

These Treatments we used increase the life of the part, increase durability and reduce friction. The TiN coating on the DSG Rack offers the ability to see your wear pattern over time.

For our SSG racks we went with a special coating that is superior to standard black nitriding. You will see that our racks have a lightish black finish as if you mixed a hint of grey into black. That is the appearance of the rack. This finish offers supreme wear resistance and reduced friction compared to cheaper finishes. This blend is a Real Deal Secret.

Offset Rack. You will notice that our rack is not centered and the rack is indeed raised to mesh better with your sector gear inside the gearbox. This translates to a better transfer of energy, and increased efficiency.

Full Grease Retaining Rails. The Rails on our piston run the entire length of the piston. This increases the Pistons stability. Under fast cycle rates, this slight movement of the piston makes a difference. As well there are small grooves in our rails to aid in carrying grease and lubricants further reducing friction.

Increased our overall Width of the piston to 22mm we have found that this piston works in pretty much every gearbox tested. Bottom of page will contain gearboxes tested.

Compatible with Retro 2024 Gearbox Spec as well as Retro Arm Gearsets. Retro made some changes to their gearboxes which caused very common brands pistons to lock up or have increased friction between the piston rack and sector gear teeth. Jake took this into account when engineering the piston.

• High Strength
• Light Weight
• Skeletonized
• 100% Drop IN AOE Corrected
• Elongated Body 3mm
• Offset Rack
• Single Sector and Duel Sector Variants
• High Strength Heat Treated Chromoly Rack
• Titanium Nitride Coating on DSG Rack
• High Strength Premium Black Coating on SSG Rack
• Full Grease Retaining Rails

This piston marks the beginning of the Future Generation of performance parts for AEGs. TM was once the gold standard, but the bar of performance and durability has been raised. Real Deal is the new standard with parts made to Real Deal Spec. Real Deal Spec is the new TM Spec. Join us as we embark into the Future Generation of upgrade parts where all real deal parts are compatible with each other, all are high performance, high durability, and all parts are indeed a Real Good Deal, they are The Real Deal!
